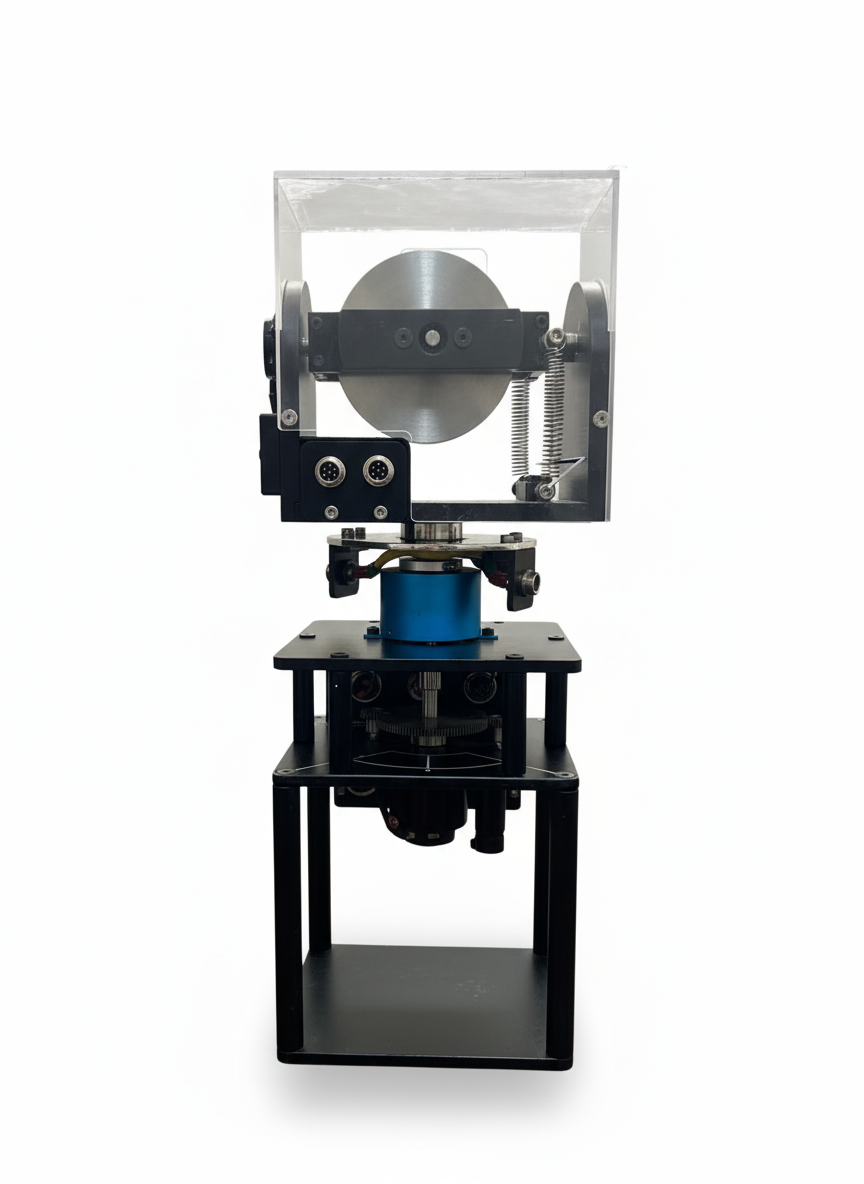

LT-MC303 Motion Platform

Device Image
Description Technical Details

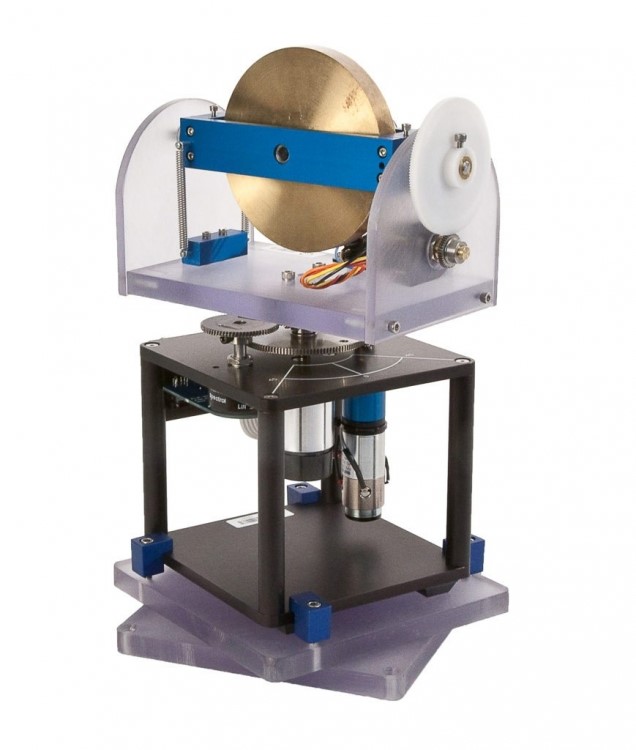

Labtronic offers the motion platform module, an excellent tool for introducing and exploring the principles of rotational dynamics. It is ideal for demonstrating real-world control challenges found in the guidance and control of ocean-going vessels, aircraft, submarines, and satellite navigation systems. The spin/stabilize platform features a rotating disk mounted within a frame, driven by a DC motor around its center. This setup allows users to study the dynamics of rotational motion and control, providing valuable insights into practical applications involving stabilization and navigation in complex systems.

Learning Objectives:

  • Learning the modeling of first-principles derivation.
  • Visualizing observer design control.
  • Visualizing PID control.
  • Learning the modeling of transfer function representation.
